PureStrip77 Concentrate

Application: Removal of paint and coatings from alloy wheels in the wheel refurbishment industry. Not suitable for steel or magnesium wheels.

Equipment compatibility: Designed exclusively for RS Pro-Strip tanks.

1. Dilution and Working Solution Concentrate:
120 litres Water: 480 litres Total working solution: 600 litres Concentration by volume: 20% concentrate and 80% water (1:4 dilution ratio).

2. Initial Order Requirements Total quantity:

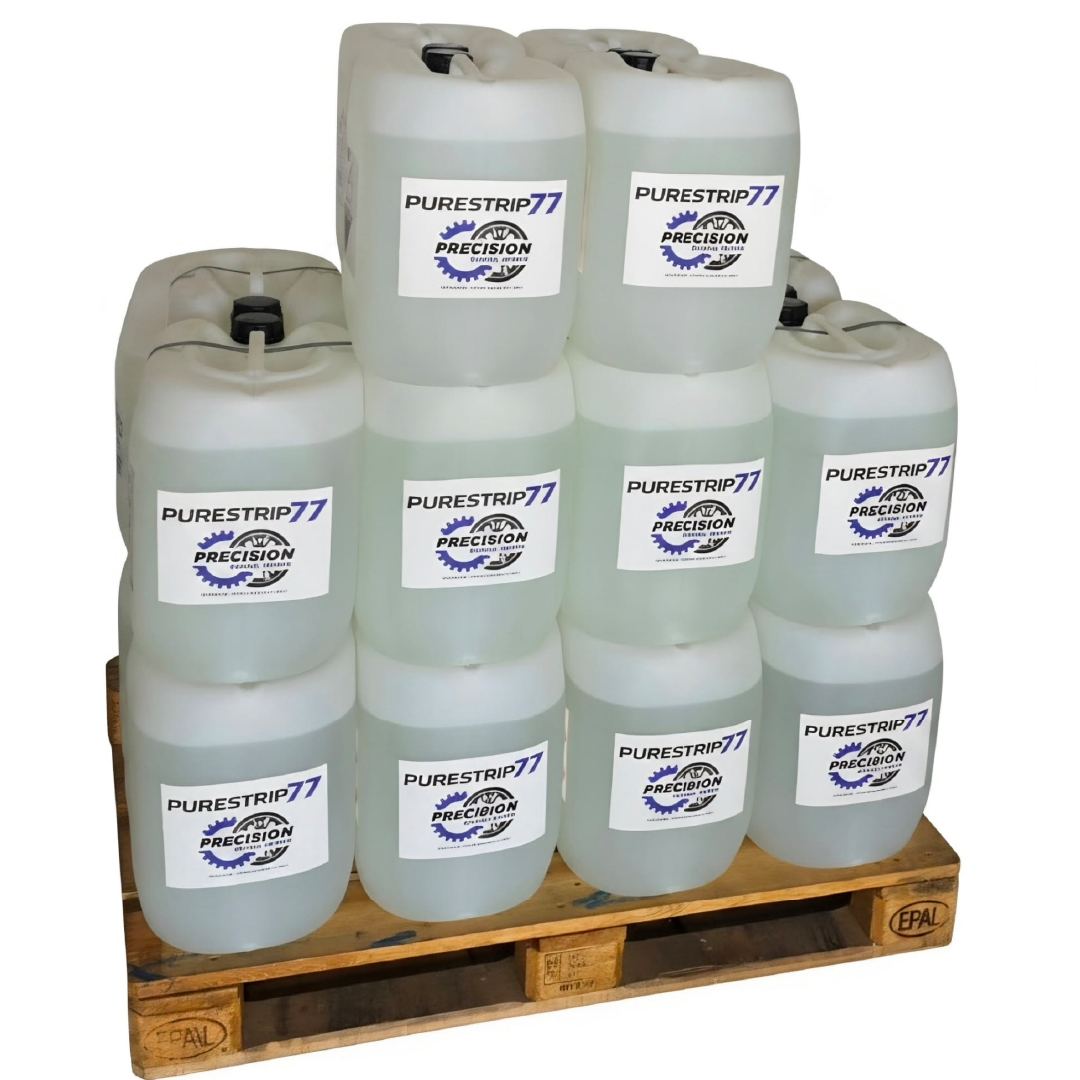

480 litres of concentrate Packaging: 16 × 30-litre containers Working solution yield: 2,400 litres at the specified dilution ratio.

3. Operating Temperature
The recommended working temperature for PURESTRIP77 is 65°C. Maintain the operating temperature in accordance with the manufacturer’s instructions and the approved operating parameters for the RS Pro-Strip tank.

4. Typical Stripping Times
Stripping times vary depending on the type of coating, the number of paint layers and the condition of the wheels.
• Average stripping time: 4–6 hours for most wheels.
• Difficult or stubborn coatings: Some wheels may require up to 10 hours. These times are intended as a guide. Inspect results in accordance with the equipment operating procedure and do not exceed the manufacturer’s approved operating limits.

5. Chemical Top-Up and Maintenance
After stripping a full load of approximately 25 wheels or more, top up the solution as follows:
• Add 4 litres of PURESTRIP77 concentrate.
• Top the tank back up to its full working level with water.
• Follow the manufacturer’s instructions for solution circulation before returning to operation. Top-up requirements may vary depending on workload and solution condition. Use the test kit to assess the chemical concentration and determine whether further replenishment is required.

6. Tank Cleaning and Circulation
Run a swirl cycle through the built-in filter system after every stripping cycle. This helps remove paint flakes and other coating debris from the tank, supporting cleaner operation and consistent stripping performance. The RS Pro-Strip tank and PURESTRIP77 are designed to provide effective stripping performance with minimal routine maintenance. Page 1 PURESTRIP77 · Product Specification

Chemical Concentration Recovery
PURESTRIP77 can continue to strip wheels even when the chemical concentration has fallen to approximately 5%, although stripping performance and cycle times may vary. The working solution can be restored to the target concentration of 20% by replenishing it with PURESTRIP77 concentrate, using the supplied test kit to check the concentration and guide replenishment. On-Site Chemical Testing Routine concentration checks can be carried out on site without sending samples away for laboratory testing.

• Take a 100 ml sample of the tank solution.
• Test the sample using the supplied PURESTRIP77 test kit, following its instructions.
• Use the result to assess the current concentration and calculate the required chemical replenishment.
• Retest after replenishment to confirm the working concentration. This allows operators to monitor and manage the solution directly on site, helping minimise downtime and maintain effective stripping performance.

7. Important Notes

• Use PURESTRIP77 exclusively in compatible RS Pro-Strip equipment.
• Do not use on steel or magnesium wheels.
• Follow the current safety data sheet (SDS), chemical handling requirements and equipment operating instructions.
• Maintain the recommended working temperature and follow approved procedures for loading, unloading, circulation and chemical replenishment.
• Use the supplied test kit according to its instructions when checking and adjusting chemical concentration.
• Keep records of stripping times, concentration readings and solution maintenance to help identify changes in performance.

After extensive research, testing and development, we’re proud to introduce PURESTRIP77 Concentrate.

Designed exclusively for RS Pro Strip Tanks, PURESTRIP77 delivers outstanding stripping performance while keeping maintenance to a minimum.

✔️ Available in concentrated form
✔️ Initial tank fill: 150 litres of PURESTRIP77 mixed with 450 litres of water (600 litres total working solution)
✔️ Fast, consistent stripping performance
✔️ Minimal maintenance
✔️ Developed and tested by Precision Wheel Equipment

We’ve been searching for a solution like this for a long time… so we created our own.

This is a game changer for the wheel refurbishment industry.

Please note: PURESTRIP77 is supplied exclusively for use with RS Pro Strip Tanks. We do not supply alternative stripping chemicals, and PURESTRIP77 is not available for use in any other stripping tank system.
