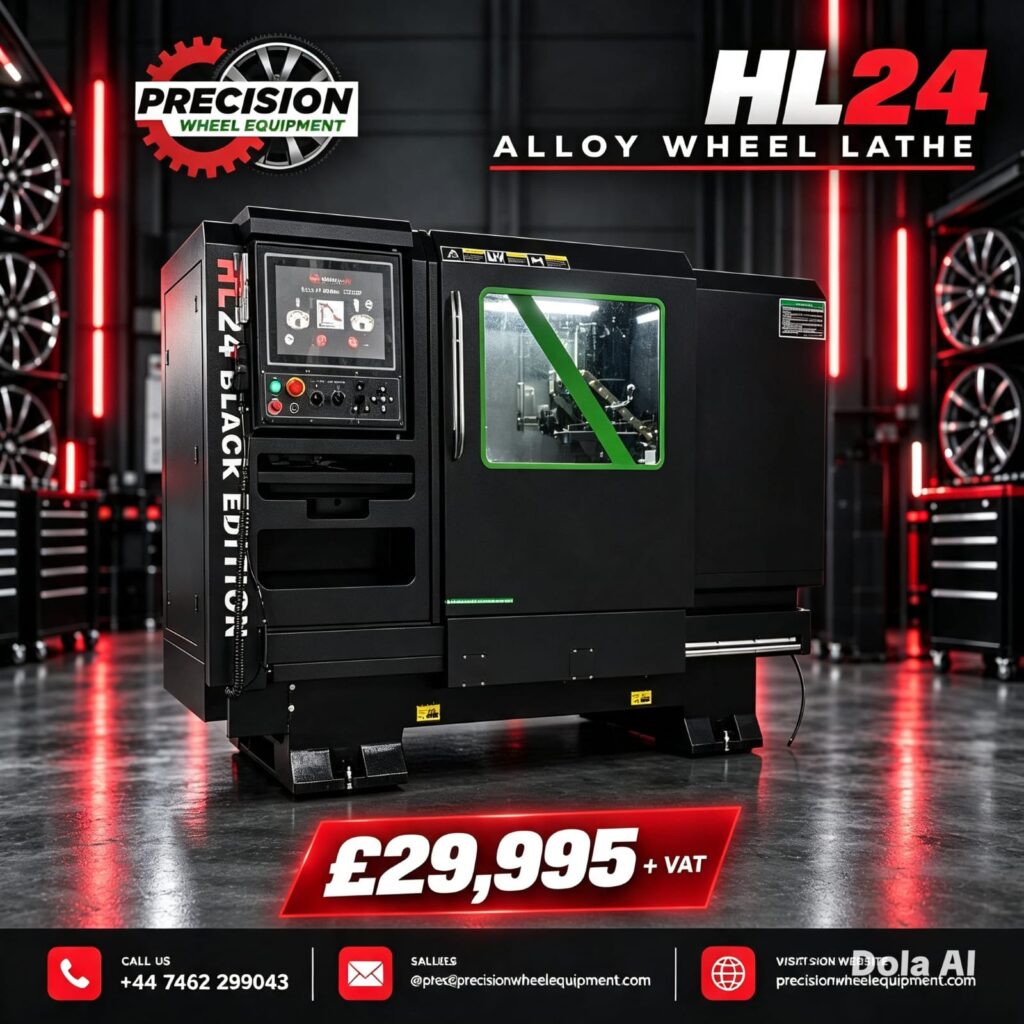

About the

HL24 CNC

Offering tomorrow’s technology today.
As one of the market leaders in the supply and manufacturing of quality alloy wheel diamond cutting
machines since 2018, why look any further?

he Precision range may be the only alloy wheel lathes that can cut around the outer edge of the rim on one plotted programme.

INFO

  • Key Features
  • Technical Features
  • Technical Specs

Key Features

  • Exclusive anti crash software
  • Precision engineered linear guides and bearings
  • Exclusive software innovations to allow for modifications during cut
  • Ability to plot and cut 90 degree return edges
    Low noise, smoother glide of axis,
  • New low bench for technician
    accessibility

Technical Feature

  • 15" Touchscreen controller
  • Special designed automatic software
  • Special 3 soft jaw chuck
  • 4-way tool post
  • Automatic oil lubrication
  • X & Z servo motor driver
  • Full closed protected guard door
  • Multi-functional panel
  • MPG hand wheel
  • 2 Working lamp
  • Keyboard and mouse

Specifications

  • X axis travel: 360mm
  • Z axis travel: 500mm
  • Jaw Chuck: 12"
  • Wheel Gripping 0.0. Range: 12" - 24"
  • Main motor power: 5.5kw
  • Spindle speed: 40 - 1800rpm
  • Max. Measured depth of prob: 50mm
  • Rapid traverse of X & Z axis: 4 & 6 m/min
  • Cutting feed: 0.005 - 100mm/r
  • X & Z motor: 6 & 10 N.M
  • Machine size (LxWxH): 2050x1490x1750mm
  • Packing size (LxWxH): 2250x1580x 2000mm
  • N. W / G. W .. 1700/1800KG
  • 400V 50HZ 3 Phase
