ELECTRIC OVEN SL

Capable of hanging and heating 6 wheels at a time and can be used in combination with an additional unit to increase future volumes.

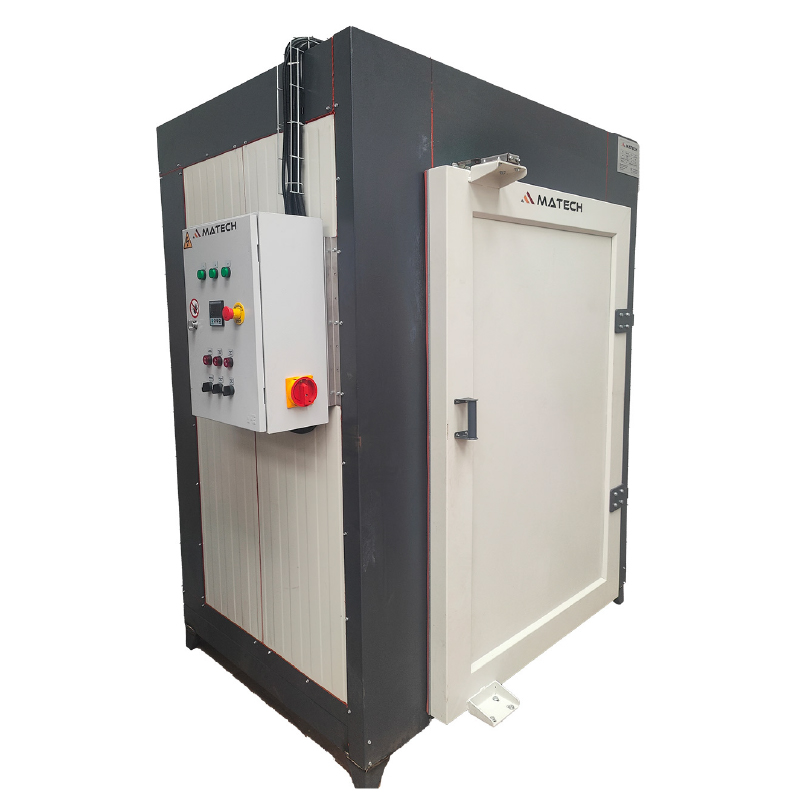

1200MM ELECTRIC OVEN

A tried and tested efficient electric recirculating oven particularly suited to alloy wheels, can be exhausted directly to the exterior atmosphere by means of 100mm ducting. Capable of hanging and heating 6 wheels at a time and can be used in combination with an additional unit to increase future volumes. Ideal for both small and medium workshops.

The oven is heated to the required temperature by means of a temperature controller and timer. The duration can be set for both the baking time required and the temperature required for the operation.
The heat is circulated by means of an electric fan and recirculated throughout the process.
The oven can comfortably accommodate 6 average size wheels.

The spray cabin is constructed of mild steel which has been folded and weld prior to being powder coated and assembled, the interior panels are of Aludip construction.

BUY NOW

PRODUCT INFORMATION

Key Benefits
  • Design tested to better than ± 5°C over a 9 point survey.
  • Forced air circulation with roof mounted fan/s for easy maintenance.
  • Multi-positional hot air return vents for uniform heat distribution.
  • Temperature calibration is achieved by adjustable circulation inlets in the chamber side walls.
  • Double wing loading doors with adjustable, explosion proof, slam shut positive door locks can be opened from inside the oven as a safety feature.
  • Controlled and automatic exhaust damper for programmed fume ventilation, as you need for your process.
  • Passive air ventilation and cooling (vents open to allow passive cooling).
  • Forced air ventilation is available (ventilation fan blows cool air into the oven) .
  • Programmable chimney opening via an electrical actuator.
  • Explosion proof expansion dampers.
  • Load/unload trolley & guide rails included.
  • Constructed from 240mm insulation walls, 400mm insulation ceiling and heavy duty box section with a durable powder coated finish.
  • Galvanized steel chamber (stainless steel optional)
  • Automatically schedule cycles to start at pre-determined times.
  • Modular electric heating system – Swiss made finned elements, easy access panel, and an innovative design offering instant heat generation.
  • Flexible heat resistant door seals.
  • CE Marked.
  • 1 year manufacturer warranty

  • • Improved temperature distribution
    • Minimizing the risk of over/underheating of elements
    • Minimization of critical furnace failure
    • Temperature measurement at two extreme points
    • Optimization of measurements for the best possible heating effects

    • Non-exclusive, limited license to use romer iCure
    • Compatible with Windows

    • Heating panel mounted in the ceiling – directly in the chamber
    • Very high failure-free rate – 1/10,000 failure rate for 5 years of operation.
    • Ceramic high temperature seal
    • The modular structure of the heating panel allows you to easily increase the power of the panel

    • Replacement of air in the chamber with atmospheric air
    • Removing moisture from the oven chamber
    • Removing fired paint smoke from the furnace chamber supervisory control unit.
    • The duration of ventilation is programmable in each step from the control level
    • Ventilation intervals programmable in each step from the control level
    • Possibility of airing at the end of each cycle
    • Air taken from the atmosphere, discharged through a chimney
    • Sealed with a profiled frame with a flexible, high-temperature-resistant gasket
    • With reduced thermal capacity, equipped with a patented insulation system to minimize thermal bridges
    • Equipped with patented explosion-proof closures – can be opened from the inside of the chamber
    • Explosion-proof closures with screw-adjustable spring in accordance with EN-746:1+A1-2012
    • Equipped with profiled door handles with reduced thermal conductivity
    • Equipped with adjustable hinges in the X, Y axes
    • 7″ color touch display
    • LED signal tower
    • Possibility to set up to 20 own programs and 10 consecutive events
    • Programmable chimney opened automatically by an electric actuator
    • View the current temperature difference in the furnace
    • Electronic control PLC + HMI
    • System compatible with the ModBus MASTER/SLAVE RS485
    • Possibility of computer control – SCADA
    • Possibility to diagnose/update software remotely via the Internet (service computer required)
    • Media consumption counter in a given cycle
    • Built-in internal real-time calendar
    • Internal memory of the last 20 cycles, including set parameters and consumption, start and end time
    • Possibility of installation diagnostics, operating hours counter and number of cycles
    • Built-in two-channel temperature recorder that saves data to a USB drive
    • Automatic recording of all cycles to a USB drive
    • Software compatible with Windows – romer iCure for reading data from a USB drive
    • Analysis of temperature rise on sensors in order to analyze the correct operation of sensors installed in the chamber

    • Double protection against overheating of the stove
    • Protection against incorrect firing when power is restored after a sudden power loss
    • Protection against incorrect heating in the event of a sudden temperature drop
    • Analysis of correct operation and direction of fan rotation

• Internal dimension: 1200 W x 1700 H x 1200 L mm

• Internal height of the chamber without rails: 1800 Hmm

• External dimensions: 1680 W x 2560 H x 1460 L mm

• Leg height: 100mm

• Type: Blind

• Door: Double leaf

• Total chamber volume: 3,19872m3

• Effective chamber volume: 2,592m3

• Maximum load: 200 kg/mb

• Maximum total load: 240kg

• Destiny Powder paint polymerization / drying

• Max input. powder paint: 640 g/cycle

• Furnace use zone

NON-ATEX

• Wall thickness from 240mm on the walls to 400mm on the ceiling

• Finish Galvanized sheet metal

Air Circulation

• Air circulation: Forced by circulation fan

• Air movement: Vertical

• Number of engines: 1 x 1.1kW

• Forced air circulation – vertical

• Temperature calibration performed with adjustable eyelets on the side walls

• Heating method: Electric heating panel

• Heating: Direct

• Total heating power: 15kW

• Maximum temperature: 200°C

• Heating time to 180°C with full load 61 min.

• Heating time to 180°C empty 34 min.
