Oven SL

£8,200.00

200°C general purpose, electric, batch ovens from 3.4m³ upwards. Ideal for a vast range of low temperature thermal processes such as drying, curing and pre-heating.

These industrial ovens are from the well respected Polish manufacturer Romer and include upgraded controls and build features for the UK market.

Constructed from a heavy duty box sectioned frame with stainless steel chamber panels and externally clad in a hard wearing powder coated finish these ovens are built to last.

The MTS + ThPID smart control systems manage oven performance to deliver accuracy and reduce power consumption. Operators have full control with and easy-to-use touch panel that can set 20 multi-stage, multi-parameter programs including maximum power use.
ThPID is combined with a ventilation system to deliver controlled cooling features for temperature accuracy on the way up and way down.

Process cycles can be analysed and recorded at your desktop using the supplied iCure software showing temperature traces and power use.

Conformity and accuracy is achieved by tried and tested electric heating panels feeding an air circulation system with adjustable hot air vents in the chamber walls.

SKU: OSL Category:

Description

Benefits and Features

  • Design tested to better than ± 5°C over a 9 point survey.
  • Forced air circulation with roof mounted fan/s for easy maintenance.
  • Multi-positional hot air return vents for uniform heat distribution.
  • Temperature calibration is achieved by adjustable circulation inlets in the chamber side walls.

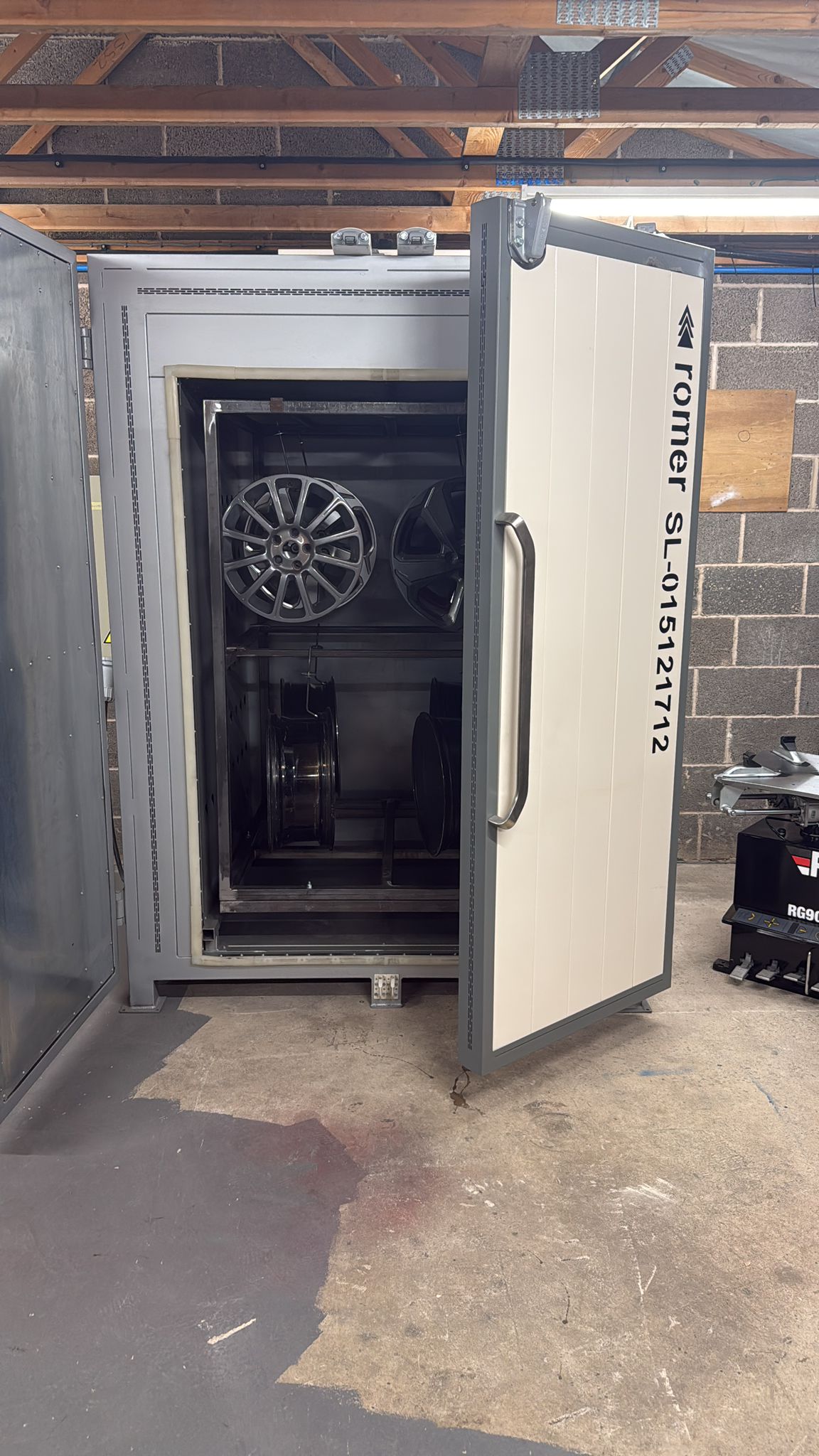

  • Double wing loading doors with adjustable, explosion proof, slam shut positive door locks can be opened from inside the oven as a safety feature.
  • Controlled and automatic exhaust damper for programmed fume ventilation, as you need for your process.
  • Passive air ventilation and cooling (vents open to allow passive cooling).
  • Forced air ventilation is available (ventilation fan blows cool air into the oven) .
  • Programmable chimney opening via an electrical actuator.
  • Explosion proof expansion dampers.

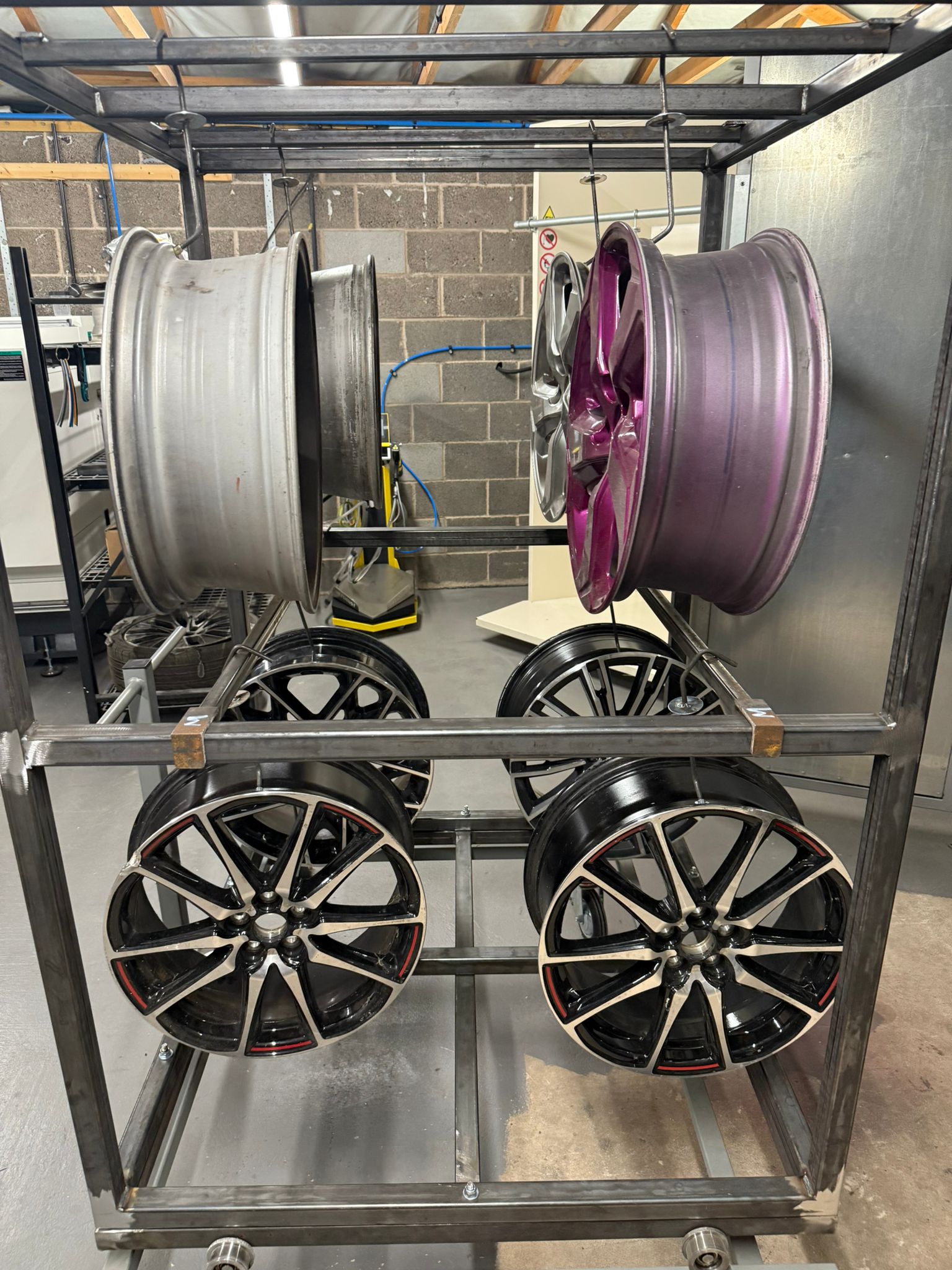

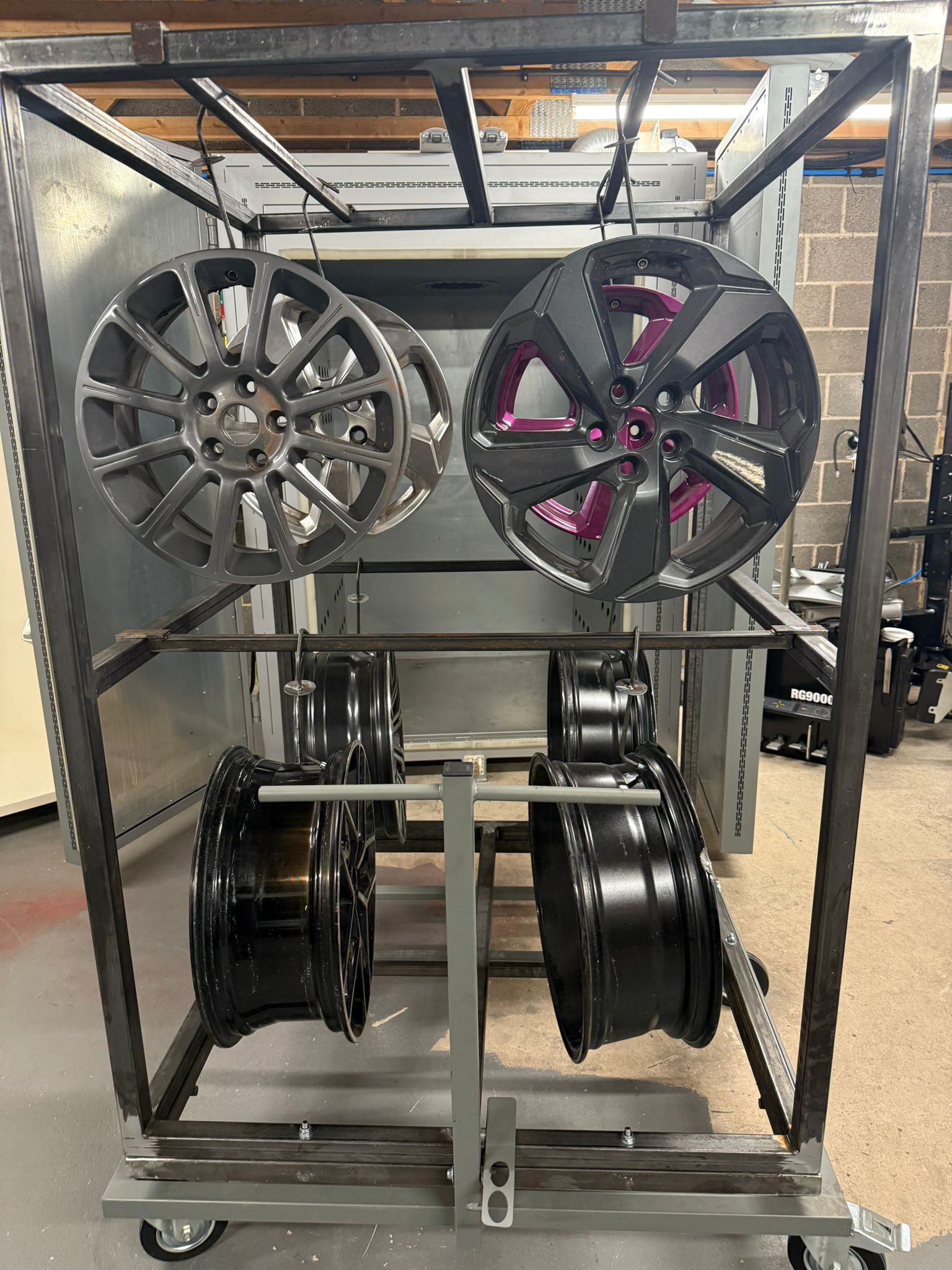

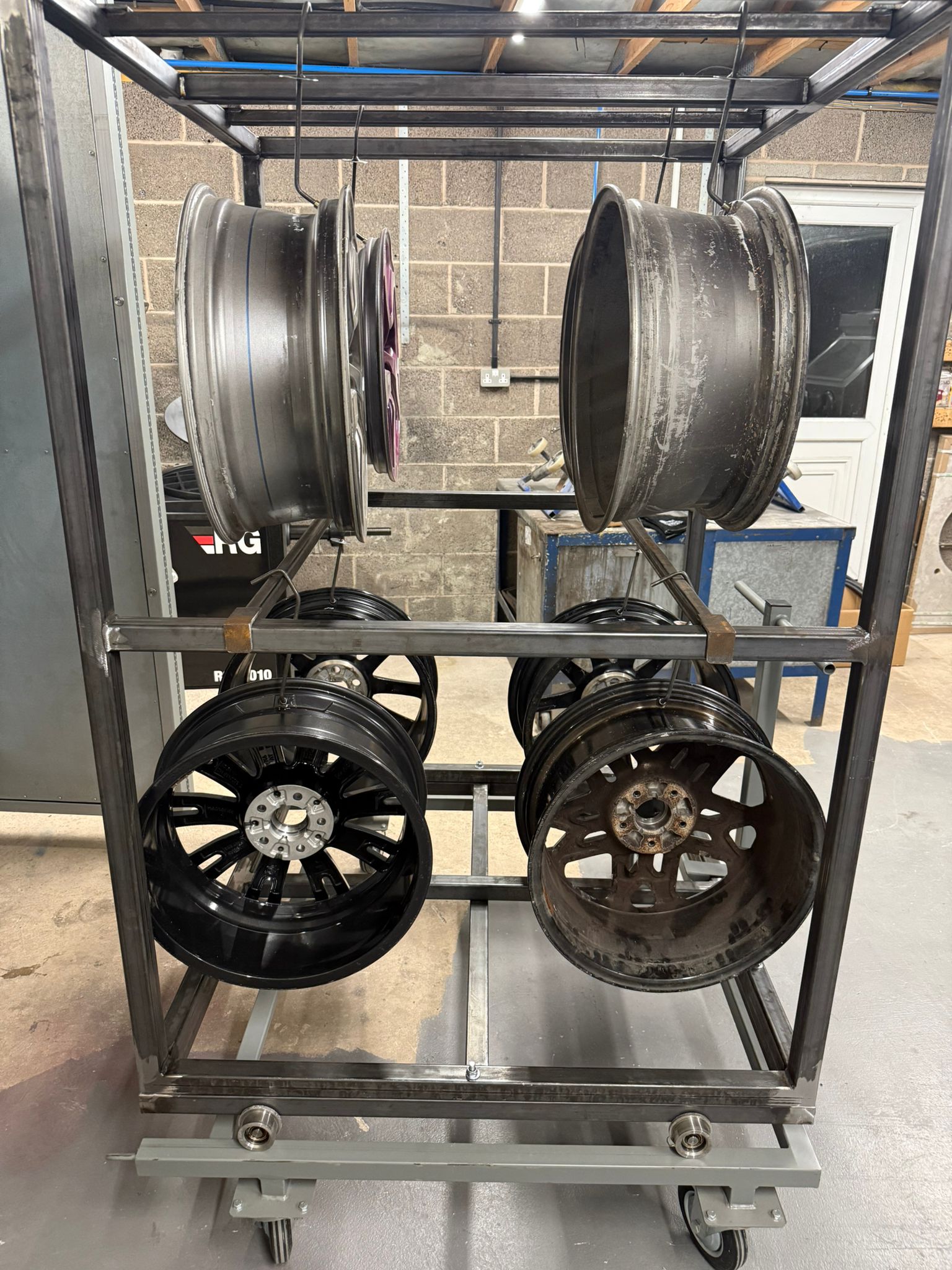

  • Load/unload trolley & guide rails included.
  • Constructed from 240mm insulation walls, 400mm insulation ceiling and heavy duty box section with a durable powder coated finish.
  • Galvanized steel chamber (stainless steel optional)
  • Automatically schedule cycles to start at pre-determined times.
  • Modular electric heating system – Swiss made finned elements, easy access panel, and an innovative design offering instant heat generation.
  • Flexible heat resistant door seals.
  • CE Marked.
  • 1 year manufacturer warranty

Additional information

Dimensions 1050 × 2085 × 1050 cm
